Product Description
| Product Name: | 10G DAC Cables | Model Name: | SFP -10G-DAC-1M |
| Data Rate: | 10G | Cable Length: | 1 Meter |
| DDM: | YES | Working Environment: | Commercial 0~70℃ |
| Compatibility: | Multiple brands of switches | Cable Type: | 30~24# AWG Cable |
| High Light: | SFP+ To SFP+ 10G DAC Cable |
PN:SFP-10G-DAC-1M

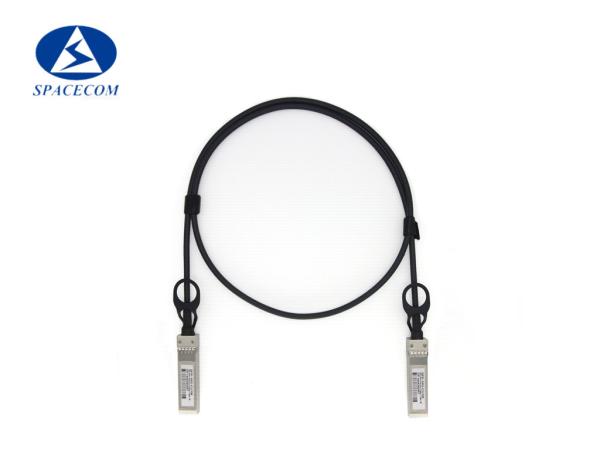

Copper Cable SFP+ to SFP+ Direct Attach Cable 1 Meter
Product Description
Features
♦ Support for multi-gigabit data rates up to 10.5Gbps
♦ Data rates backward compatible to 1Gbps
♦ Hot-pluggable SFP 20 PINs footprint
♦ I/O Connector designed for high speed differential signal applications
♦ Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
♦ Compatible to SFP+ MSA
♦ Available lengths (in meters): 0.5,1, 3, 5,7,10
♦ RoHS compliant
♦ Power Supply :+3.3V
♦ Case operating temperature: Commercial: 0°C to +70°C
Applications
♦ High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
♦ Switched fabric I/O such as ultra high bandwidth switches and routers
♦ InfiniBand SDR, DDR, QDR
♦ Data center cabling infrastructure
♦ High density connections between networking equipment
♦ 10G Ethernet Data Center Intra-Rack and Inter-Rack links
Description
SPACECOM DAC SFP+ cable assemblies are high-performance, cost effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. SFP+ copper modules allow hardware manufacturers to achieve high port density, configurability and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standard.
Quality control
